Label Templates For LP24/70LS
- LP Code:
- Label Templates LP24/70LS
Free Word Templates & PDF Templates for printing A4 sheets of self adhesive labels. Use the links below to download a template for your A4 labels; all of our label templates have been tested to ensure that they are accurate and compatible with our labels, so you can print your labels quickly, easily, and trouble free!
View All Label Templates For Rectangular Labels With Square Cut Corners

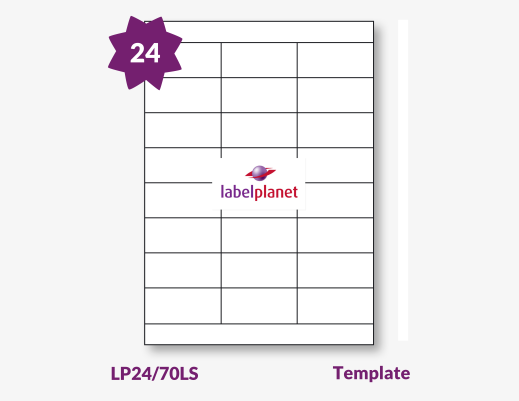

Information About This Label Size:
Number Across
3
Label Width
70mm
Label Height
34mm
Horizontal Pitch
70mm
Vertical Pitch
34mm
Number Down
8
Top Margin
12.5mm
Bottom Margin
12.5mm
Left Margin
0mm
Right Margin
0mm
Also Known As
EL24LS
Download LP24/70LS Label Templates:
| File Type | Description | |
|---|---|---|
| Word | LP24/70LS Portrait | |
| Word | LP24/70LS Landscape | |
| LP24/70LS Portrait | ||
| LP24/70LS Landscape |
- Rectangles with square cut corners
- Centralised layout
- Selvedge present
- Bleed not possible
- Feed direction not indicated
- No gaps between labels
- These labels go all the way to the edge of the sheet; only printers with an “Edge-To-Edge” printing capability will be able to print the full area of each label. If you do not have access to such a printer, you will need to ensure your design does not use the area that your printer cannot print.
- Please note that these labels are sometimes cut to a label height that is very slightly under 34mm.
- If you find that your design is printing out slightly too big for your labels (i.e. the bottom of your printed template finishes just below the bottom edge of the last label on the sheet), you may wish to try adjusting the label height to 33.9mm. You will also need to increase the top margin to accommodate for using the smaller label height. If you are working in landscape the height becomes the width; so if your design doesn’t start at the left edge of the first label in each row and end at the right edge of the last label in each row, you may need to try using 33.9mm as the label width. Remember, you will also need to alter the side margins.
Products Available In Template Size LP24/70LS
Please Note:
These templates are provided in good faith for our customers to use free of charge. Customers should test the suitability of these templates for their requirements (including compatibility with their software/hardware), and are responsible for making any necessary adjustments to achieve the best possible alignment.All products are manufactured with a tolerance, which is an allowable deviation from the measurements stated on the goods (for example, an A4 sheet may have a tolerance of +/- 2mm); this tolerance can lead to slight variation in the measurements of label products and so we recommend that customers complete a test print of any template before printing onto their label products so that they may determine if the template requires any further adjustments.
^ Our labels are very close in size/layout to the alternative codes provided (to within +/- 1mm)
